Product Details

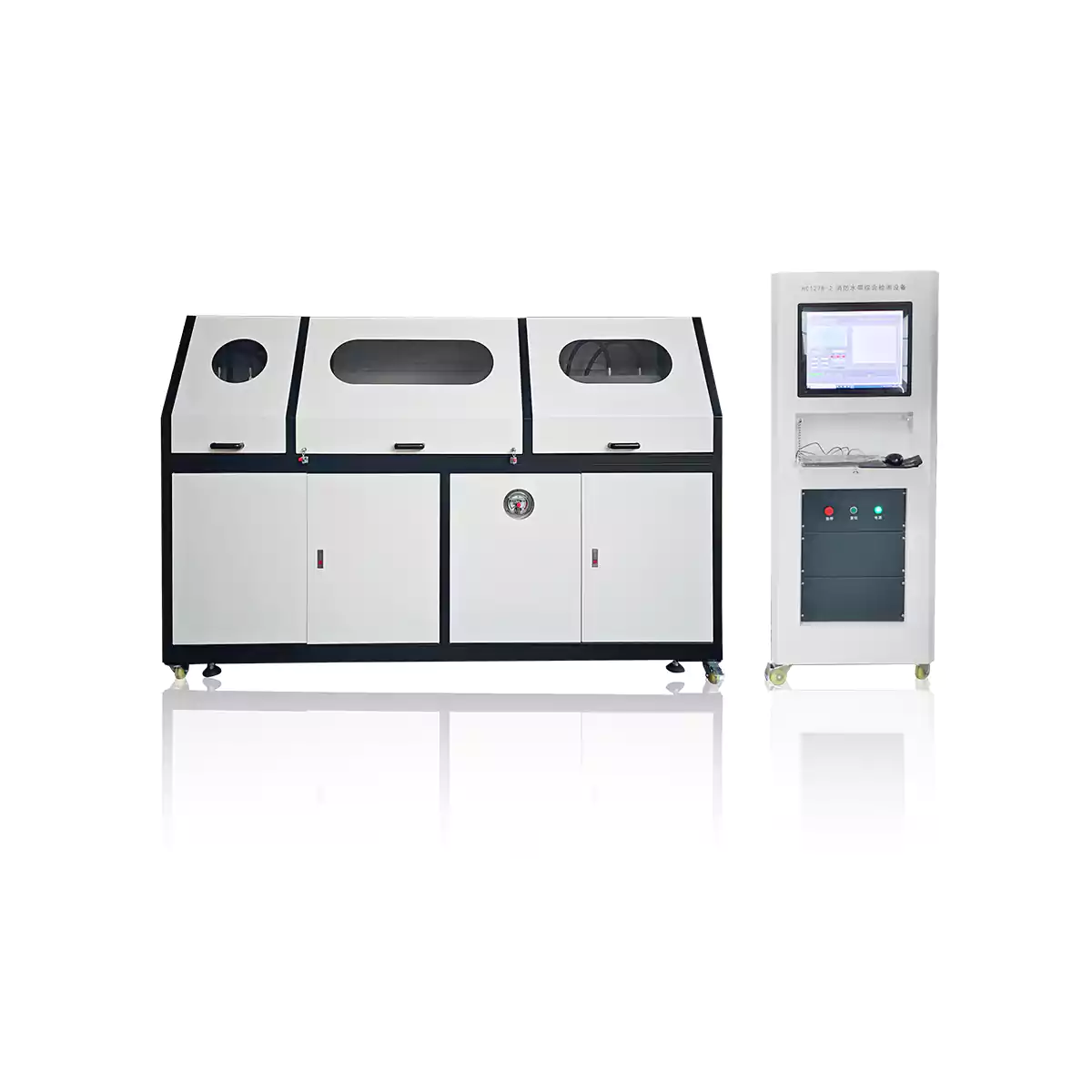

Fire Hose Pressure Test Bench
Brief Introduction
ZONSKY Fire Hose Pressure Test Bench evaluates the strength, durability, and leak resistance of fire hoses under high-pressure conditions. The apparatus applies controlled hydraulic pressure to the hoses and measures key performance parameters such as burst pressure, pressure loss, and long-term structural integrity.
Highlights / Outstanding Features / Characteristics
The computer, PLC, and module collect data and control the pressure, flow, pressure holding time, and pressure increase rate, etc.
It adopts the automatic clamping and sealing technology of the hose, which solves the time-consuming and laborious problem of clamping and sealing the hose in the old testing machines. The test is automatically controlled by the computer, and the test data is recorded throughout the entire process. The report can be automatically generated according to the requirements, allowing the hose test to be completed efficiently and automatically. It features a small footprint, compact structure, high automation, water recycling, stable operation, and complete accessories.
Description
In compliance with:
- ISO 6182-6
- EN 14540
- NFPA 1961
- BS 6391
- JIS K 2331
- AS 2792
Main performance parameters:
| Parameter | Value |
|---|---|
| Instrument Composition | Pressure source, test part, and operation control part |
| Source of Stress | Test medium: water (recycling with filter device) |
| Pressure Range | 0.05 MPa – 10 MPa |
| High Pressure Pump Pressure | 0 – 15 MPa |
| Boost Rate | 5 – 15 MPa/min |
| Voltage Stabilization Device | Pressure fluctuation < ±0.05 MPa (below 3.0 MPa), < ±0.1 MPa (above 3.0 MPa) |
| Pressure Sensor | 0 – 15 MPa; Accuracy: ±0.01 MPa; Resolution: 0.001 MPa |
| Pressure Collection Interval | 100 ms |
| Flow Rate | 16 L/min |
| Sample Length | 1.2 m |
| Sealing Device | With exhaust valve |
| Water Seepage Measurement | Water collection tank size: (1000±5) mm long; width and depth: 100 mm |
| Operation Control Part | Computer + PLC module to collect and control |
| Pressure Holding Time | 0 – 99.99 min |
| Power of the Whole Machine | 10 kW |
| Dimensions | Length: 3.4 m; Width: 0.85 m; Height: 1.65 m |
| Weight of the Whole Machine | 750 kg |
