Product Details

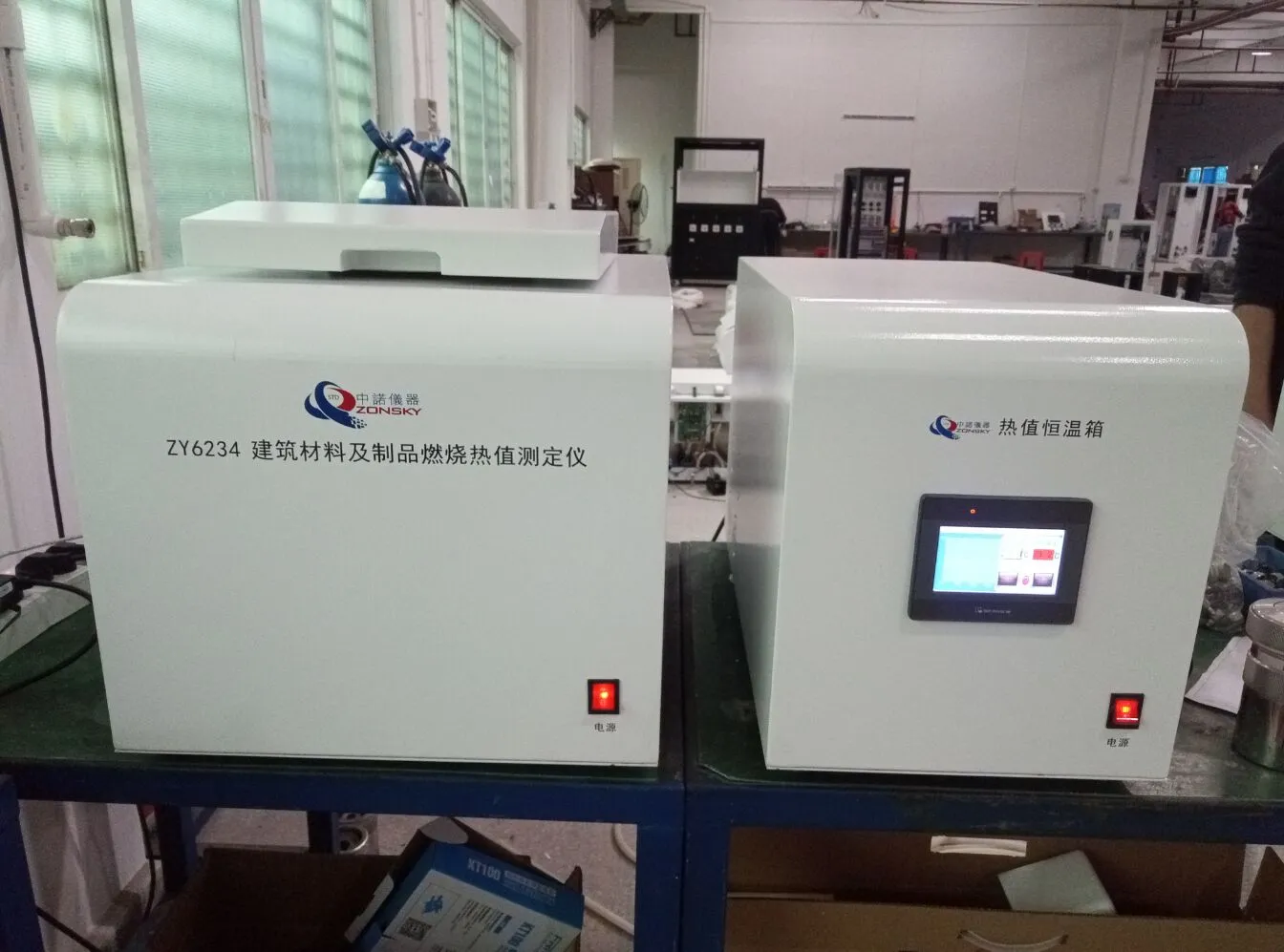

ZY6234 Bomb calorimeter apparatus
In a fully automatic bomb calorimeter with constant heat capacity, the combustion calorific value of micro-controlled building materials is tested and evaluated in accordance with the calorific value determination test methods specified in ISO 1716-2018 and EN 13501-1.
This oxygen bomb calorimeter features both an adiabatic calorimetric system and an isothermal calorimetric system. It automatically records temperature rise data and time, calibrates the temperature, directly calculates the gross and net heat values, and outputs the results directly.
Apparatus Details

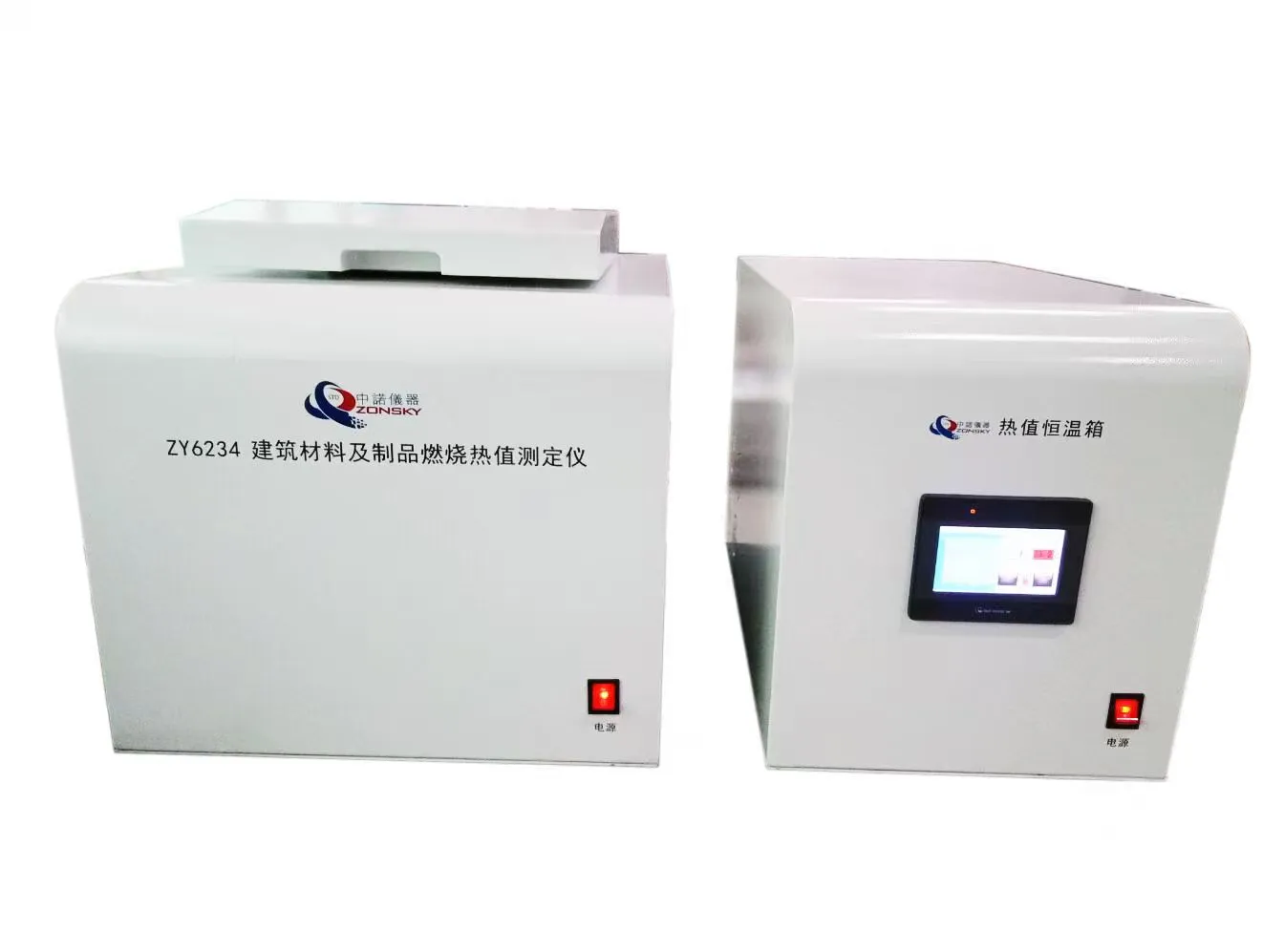

ZY6234 Burning Calorific Value (Oxygen Bomb) Test Apparatus
The ZY6234 Calorific Value Test Apparatus is a microprocessor-controlled oxygen bomb calorimeter used to determine the combustion calorific value of building materials. In accordance with British standards ISO 1716-2018 and EN 13501-1. It performs high-precision, automated testing of the gross and net heat value of combustion for solids, liquids, and other combustible materials (coal, petroleum, food, wood, and biomass).
Specifications
| Gross calorific value of combustion | 0.01MJ/kg ~30MJ/kg |
| Repeatability error of combustion calorific value | Dynamic ≤0.1% |
| Temperature Measurement Range | 0～50℃ |
| Temperature Resolution | 0.0001℃, using PT100 sensor |
| Oxygen Bomb Volume | 300ml. Mass is 3.2kg |
| Inner Cylinder Volume | 2200ml |
| Oxygen Bomb Oxygen Filling Pressure | 0～3.5Mpa Without Leakage |
| Oxygen Bomb Pressure Resistance | ≧ 21Mpa water pressure |
| Stirring Power | 3W |
| Stirring Speed Inner Barrel | 375 r/min |
| Power Supply | AC 185~245V |
| Crucible (Stainless Steel) | 2 pcs |
| Single-head Oxygen Bomb | 1 pcs |
| Ignition Wire | 1 Roll |
Highlights
The flammability test apparatus' computer automatically records temperature rise data and time, and can generate graphical displays of the recorded data, including curve graphs, Excel spreadsheets, print functions, data entry, and command control.
Based on input data such as heat capacity, specimen mass, and heat added, the data recording center automatically performs temperature calibration and calculates the total heat value, then displays the results.
The Burning Heat Release Test Apparatus system features functions such as fault alarms and warning prompts to alert users when samples are found to be non-compliant.
*Notes: The equipment's test standards comply with ISO 1716-2018, “Fire Reaction Testing of Products—Determination of Heat of Combustion (Heat),” Section 7.9: Crucible Method for Testing Samples.
Contact Us to Get the Best Quote
Accessories List
| Series | Accessories | Model | Quantity | Series | Accessories | Model | Quantity |
| 1 | Pressure Regulating Valve | AR-2000 | 3 pcs | 6 | USB-485 Adapter | UT-890 | 2 scs |
| 2 | Pressure Gauge | 0-2KG | 2 pcs | 7 | Single-head Oxygen Bomb + Oxygen Charger | 300mL | 1 scs |
| 3 | Data Acquisition Board | JF-CSv2 | 4 pcs | 8 | Solenoid Valve | WETON 4ways, 24V | 3 pcs |
| 4 | PLC | 32Bit | 1 set | 9 | Mainboard Module | 9000CD | 1 set |
| 5 | Temperature Module | 8-Channel Relay Module | 1 set | 10 | Computer | Factory Default Settings | 1 set |
