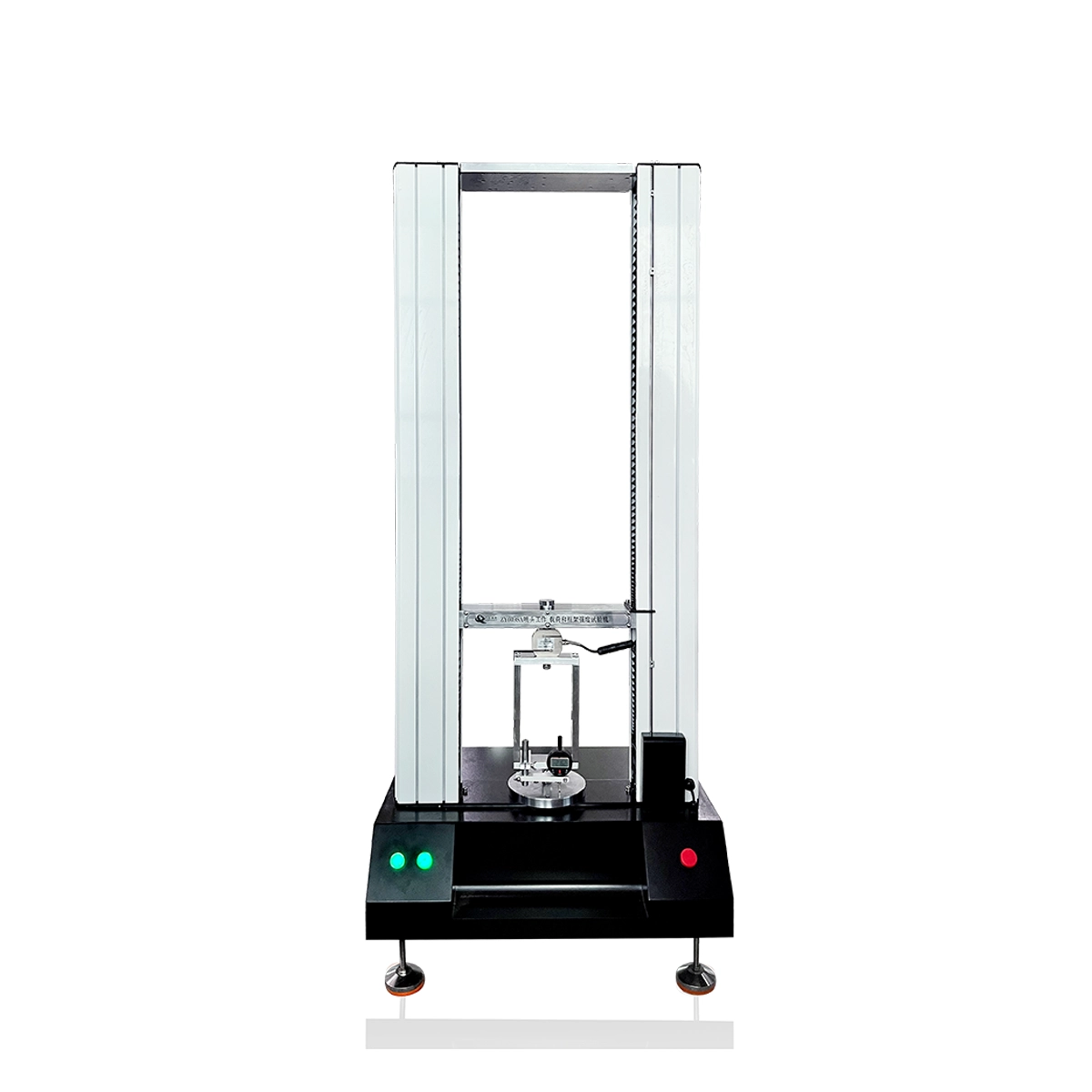

Flattening Test Machine
Brief Introduction
The Mineral Insulated Cable Flattening Tester measures how well heavy-duty cables resist crushing and structural deformation under intense pressure.
Highlights / Outstanding Features / Characteristics
- Crush Resistance Testing: Applies precise, controlled compressive forces to evaluate a cable’s mechanical robustness.
- Insulation Protection: Checks for critical structural changes to ensure internal insulation integrity is maintained under pressure.
- Targeted Cable Specifications: Perfectly suited for copper-core or copper-alloy sheathed cables.
- Size & Voltage Limits: Designed for cables with a diameter of less than 25 mm and rated voltages of 500V and 750V.
Description
In compliance with:
- IEC 60702-1: 2002
ML Cable Flattening Test Machine Main Parameters
| Parameter | Specification |
|---|---|
| Maximum Test Force | 5000 kg |
| Displacement Stroke | 150 mm |
| Displacement Resolution | 0.01 mm |
| Displacement Speed Adjustment Range | 5–200 mm/min |
| Displacement Rate Control Accuracy | ±0.5% when the rate is ≥5 mm/min |
| Anvil Specifications | Length: 75 mm, Bottom Width: 25 mm, Fillet: R10 mm |
| Automatic Calculation | Calculates displacement stroke and loading pressure based on the flattening coefficient |
