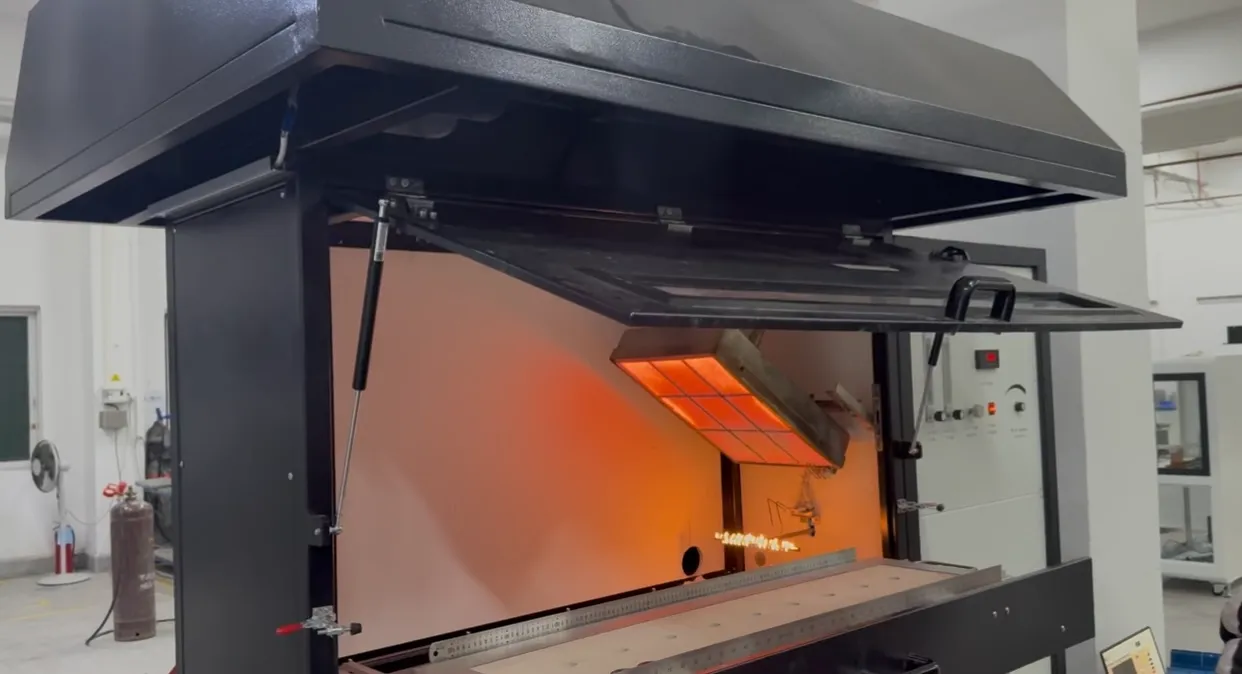

ZY6235-PC Flooring Radiant Panel Test Apparatus
Brief Introduction
The Flooring Radiant Panel Test Apparatus (ZY6235-PC) is applicable to the determination of static smoke production when building materials and their products are burned, and can also be used to determine the static smoke production when other solid materials are burned.
Highlights / Outstanding Features / Characteristics
- The instrument boasts high accuracy, precision, stability, and reliability.
- The instrument has a long service life and low operating costs.
- Windows operating system interface, LabVIEW style, with a robust security
- It has a very fast response time, is easy to operate, and has a user-friendly interface.
Description
Model:
ZY6235-PC
Item Name:
Flooring Radiant Panel Test Apparatus
Compliance Standards:
ISO 9239-1-2025
Reaction to fire tests for floorings – Part 1:Determination of the burning behaviour using a radiant heat source
ASTM E648-2025
Standard Test Method for Critical Radiant Flux of Floor-Covering Systems Using a Radiant Heat Energy Source
Specifications
- Radiant area: (300±10) mm x (450±10) mm
- The radiant plate can withstand temperatures: 900℃
- The exposed surface of the specimen： (200±3) mm x (1015±10) mm
- Combustion Torch：Made of stainless steel, ID: 6mm OD:10mm.
- Exhaust Capacity:(39-85) m³/min
- Gas velocity: (2.5±0.2) M/S
- Velocityaccuracy: ±0.1 m/s
- Anemometer: Range 0-10 m/s
- Pyrometermeasurement range: (480-530)℃blackbody temperature ; Accuracy: ±0.3℃
- Sensitivity: Constant within the wavelength range of 1µm to 9µm
- Radiant Panel Gas Flow Rate:1.5~15 L/min.
- Radiant Panel Air Flow Rate: 60~600 L/min.
- Measurement of Chamber Flue Temperature: 3.2mm K-type stainless steel armored thermocouple
- Standard Calibration Plate:(1050±20) *(250±10) mm
- Light Source: Incandescent lamp, color temperature (2900±100) K
- Optical Receiver: Employs imported Hamamatsu silicon photovoltaic cells from Japan
- Optical Measurement System Calibration: filters with transmittance of 0%, 25%, 50%, 75%, and 100%
Control System / Software
PLC Control System / Computer Operation Software
Options
Heat flow meter
