Toxicity Index Tester
Brief Introduction

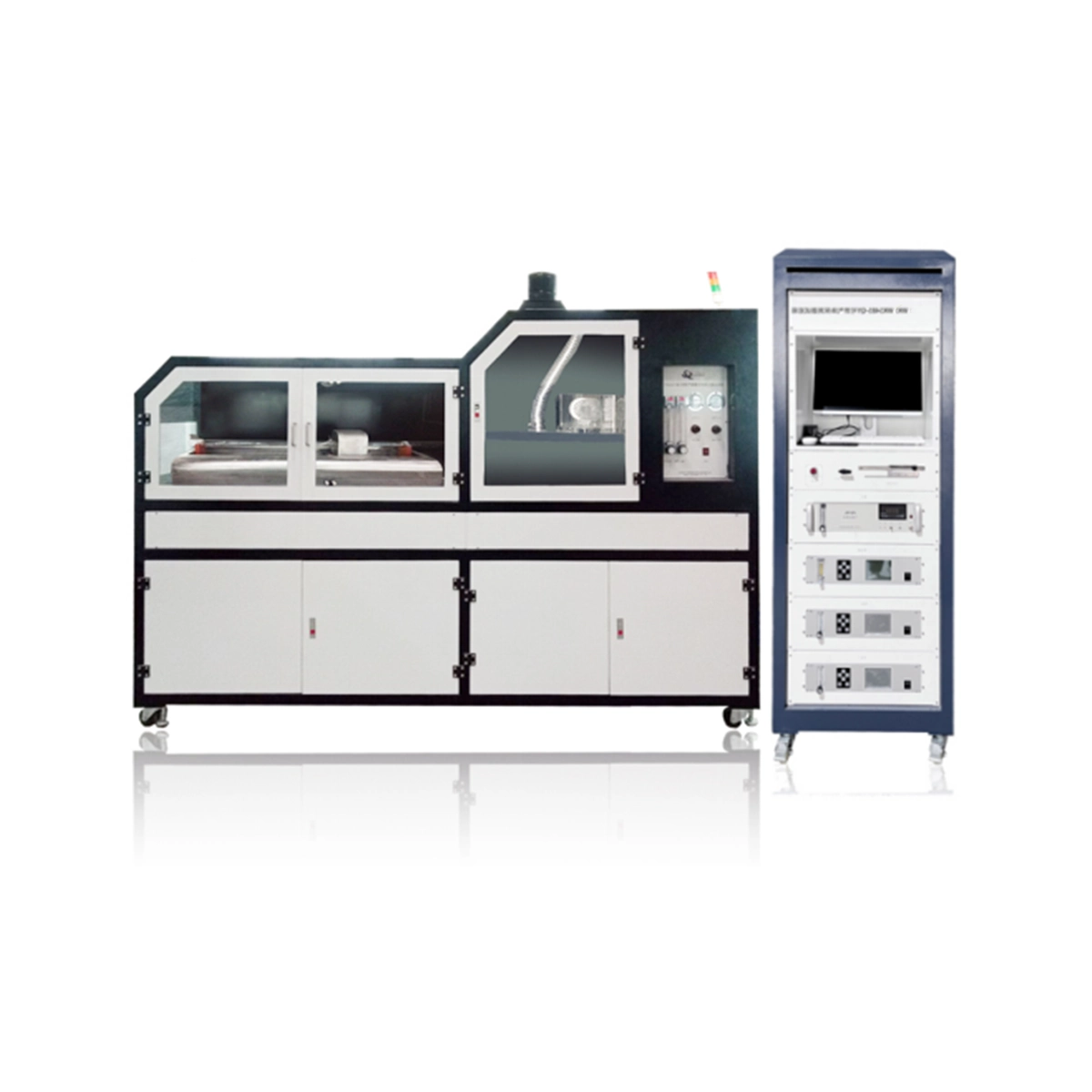

The ZONSKY Toxicity Index Tester evaluates the safety of wire, cable, and polymer materials by measuring the toxic gases they release when burned. It completely combusts material samples in a controlled chamber, allowing operators to accurately analyze the concentration of harmful gases—such as carbon monoxide and hydrogen cyanide—and calculate a total Toxicity Index.
Description
In compliance with:
- EN 50305:2020 “Railway Facilities. Test Methods for Railway Locomotive Cables with Special Flame Resistant Properties”;
Test process:
- First, a preliminary qualitative analysis is carried out to determine whether it contains nitrogen and sulfur
- If it is determined that nitrogen and sulfur are present, a quantitative analysis of SO2, NOX and HCN should be carried out. If it is confirmed that there is no nitrogen and sulfur, a quantitative analysis of SO2, NOX and HCN can be omitted.
Toxicity Index Tester Technical Parameters
| Performance | Specifications |
|---|---|
| Tube Furnace | The furnace features a balanced temperature field, low surface temperature, and a fast heating/cooling rate. |
| Effective Heating Chamber | 600×φ42mm |
| Operating Temperature | 800±10°C, test duration: 40 minutes |
| Temperature Control System | P.I.D temperature control system |
| Heating System | Electric heating system, power: 220V/10KW |
| Flow Rate Adjustment | Needle valve for flow control, flow rate: 0.33m/s |
| Air Source | Air compressor, flow rate: 160L/h |
| Combustion Tube (Material) | Refractory tube made of silicon dioxide, resistant to corrosive gases |
| Combustion Tube (Specs) | Inner diameter: 40mm; extension length from the inlet side of the tube furnace: 60–200mm; extension length from the outlet side: 60–100mm, leaving a gap for thermal expansion |
| Combustion Boat (Material) | Fused quartz tube |
| Combustion Boat (Specs) | Length: 100mm, Width: 25mm, Depth: 10mm |
| Boat Delivery Method | Bar magnet and platinum wire pulling method |
| Gas Collection | 3 absorption bottles and 2 gas bags |
| Air Supply System | – |
| Air Flow Meter | Adjustable range: 16L–160L |
| Air Compressor | Provided by your company |
| Sampling Section | – |
| Sampling Device | Includes bubbling device, quartz wool, cooling pump, filter, etc. |
| Sample Amount | 500mg–1000mg, with an analytical balance accurate to 1mg |
