Flammability Test Apparatus
ISO 11925-2:2020
Description
Site-1

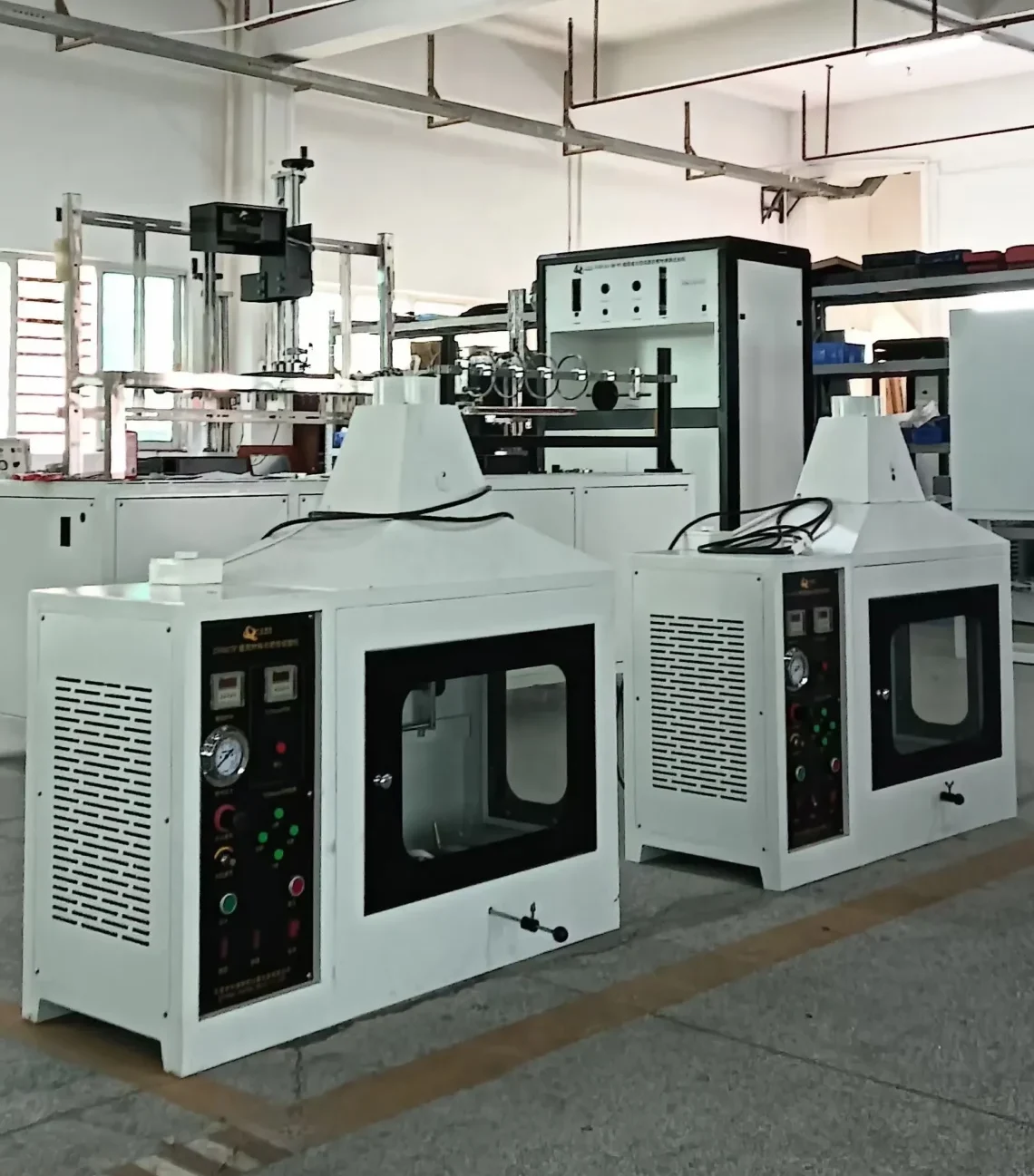

The ZONSKY Building Material Flammability Test Apparatus evaluates the flammability characteristics of construction materials by simulating real fire conditions. This device measures flame spread, ignition time, and combustion behavior under controlled conditions, providing reliable data on the fire resistance of various building materials.
More Product Media
Site-2
Site-3
Product Demo Video
Flammability Test Apparatus Main Parameters
| Parameter | Specification |
|---|---|
| Instrument Composition | Control box, burner, solenoid valve, signal current voltage holder, flame measurement device |
| Sheet Material | High-quality galvanized steel with electrostatic spraying and high-temperature baking paint |
| Observation Windows | Front and side, made of heat-resistant glass |
| Exhaust System | Exhaust hood with fan circulation, stainless-steel mesh cover, 50mm × 250mm exhaust pipe |
| Airflow Measurement | An anemometer with ±1m/s accuracy, measuring speeds from 0–1 m/s |
| Burner Type | Standard ISO 11925-2 gas burner |
| Fuel | 99% purity propane gas (customer-provided) |
| Burner Tube | 4 mm diameter |
| Burner Angle | Adjustable from 45° to 90° |
| Flame Length | 20 mm to 100 mm, adjustable |
| Burner Specifications | Nozzle diameter: 10 mm, regulating valve, suction holes: 4 mm diameter |
| Regulating System | Integrated pressure regulator (0–50 kPa) |
| Ignition System | Gas system equipped with an igniter |

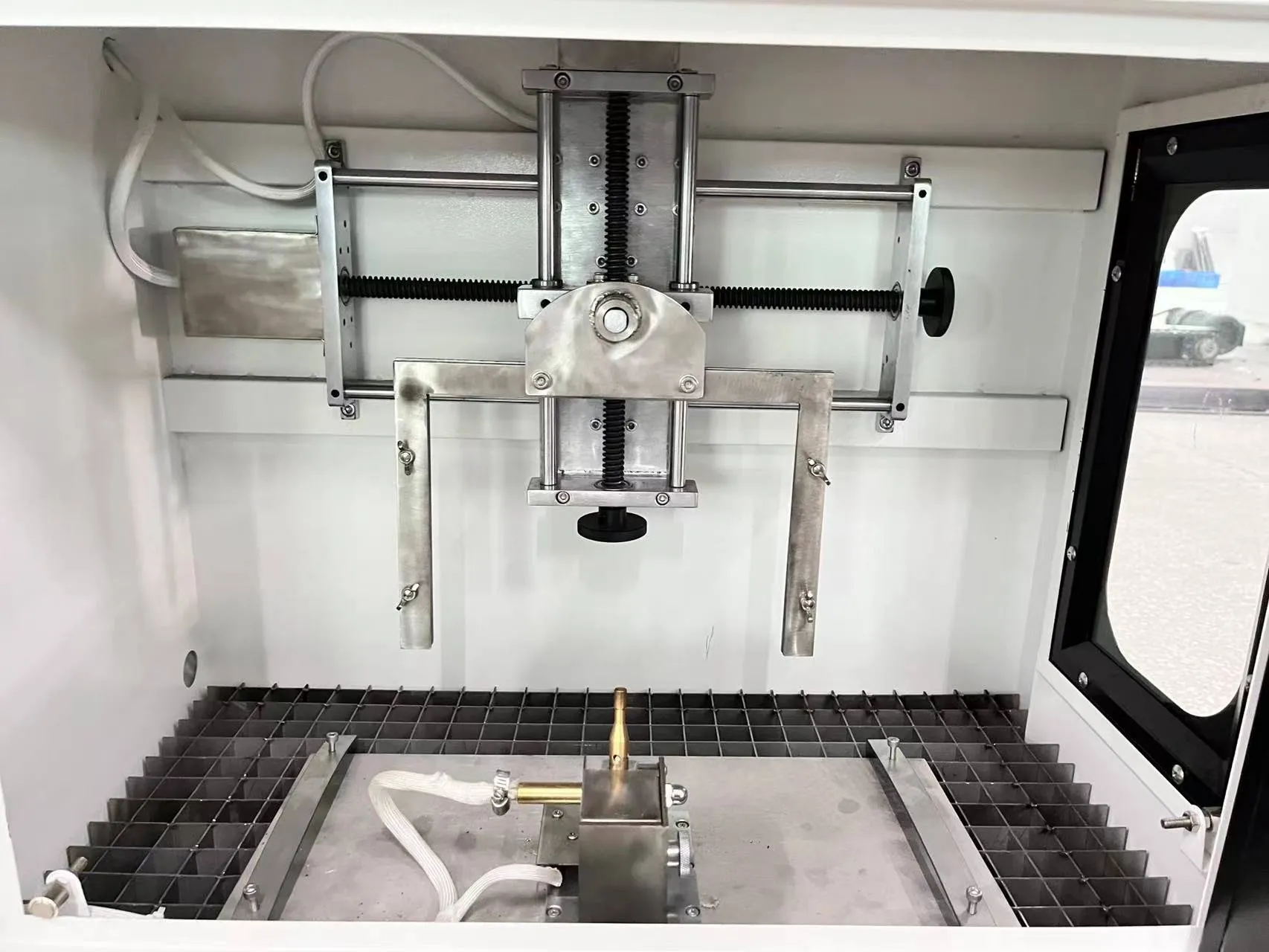

| Sample Holder | U-shaped stainless-steel channels, flame-resistant design |
| Timing System | Digital display with ±1s accuracy |
| Flame Application Time | Adjustable between 0 and 60s |
| Measuring Probes | Optical and digital flame measurement |
| Safety Features | Flame detection sensor, safety cutoff valve, emergency shutdown system |
| Power Supply | AC 220V, 50Hz |
| Control Interface | User-friendly digital control panel |
| Operating Temperature | 20°C–30°C |
| Humidity | ≤70% RH |
| Airflow Control | Ensures accurate test conditions |
| Installation Requirements | Stable power supply, gas source, and proper ventilation |
