Product Details
ZY6017B-VB Rigid Foam Combustion Tester
Brief Introduction
The Rigid Foam Combustion Tester delivers precise fire-behavior analysis to help manufacturers evaluate the fire resistance and safety of rigid foam plastics.
Highlights / Outstanding Features / Characteristics
- Comprehensive Fire Metrics: Assesses critical flammability characteristics, including ease of ignition, surface flame spread, and heat release intensity.
- Versatile Applications: Engineered specifically to provide reliable, data-driven insights for academic research, industrial quality control, and regulatory safety testing.
- Controlled Testing Environment: Exposes material samples to highly regulated and repeatable flame or heat sources.
- Factory-Direct Equipment: Manufactured directly by ZONSKY, guaranteeing authentic product engineering, full compliance, and proprietary build quality.
Apparatus Details
In compliance with:
- ASTM D3014-04a
- ISO 3582
Performance parameters
| Parameter | Specification |
|---|---|

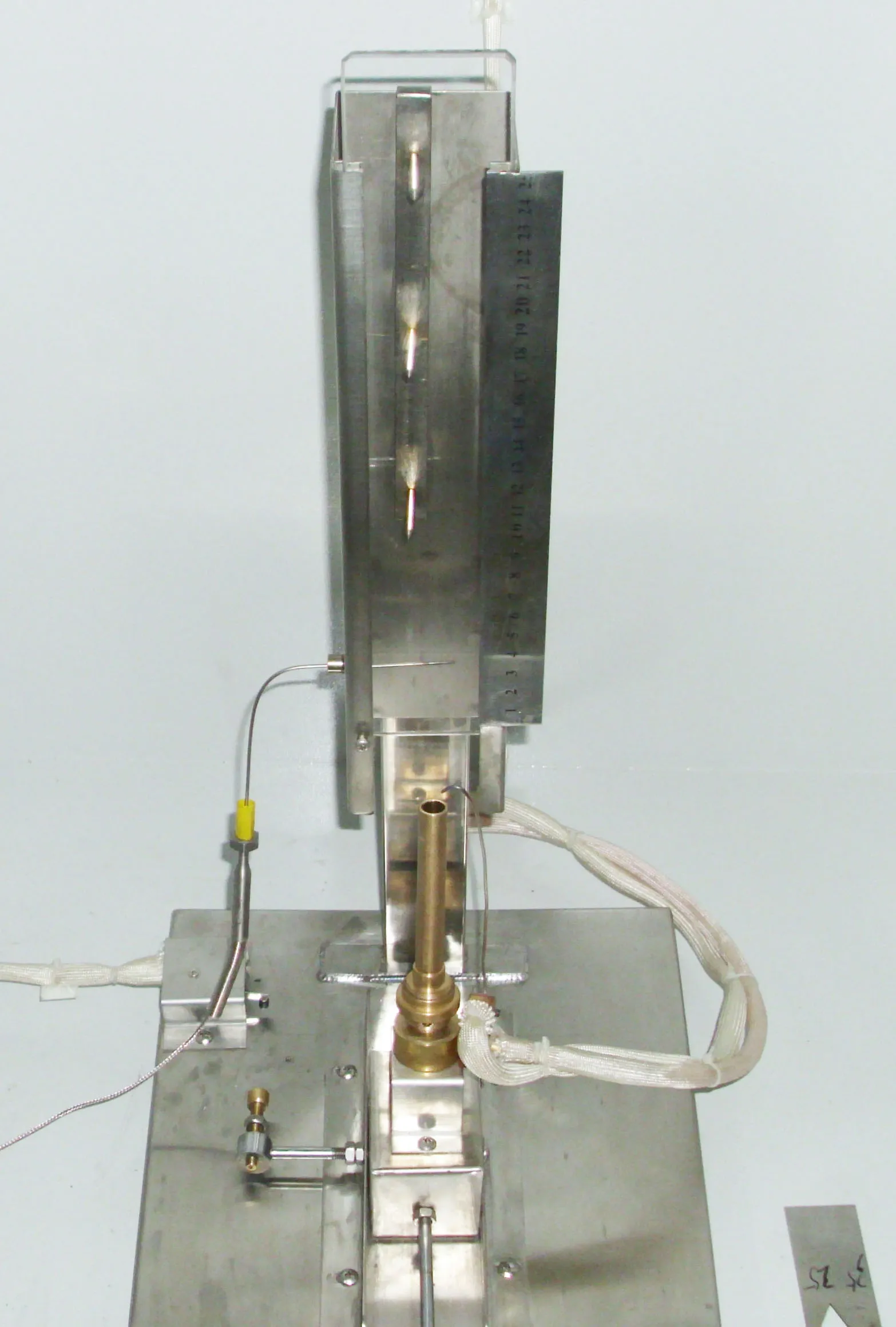

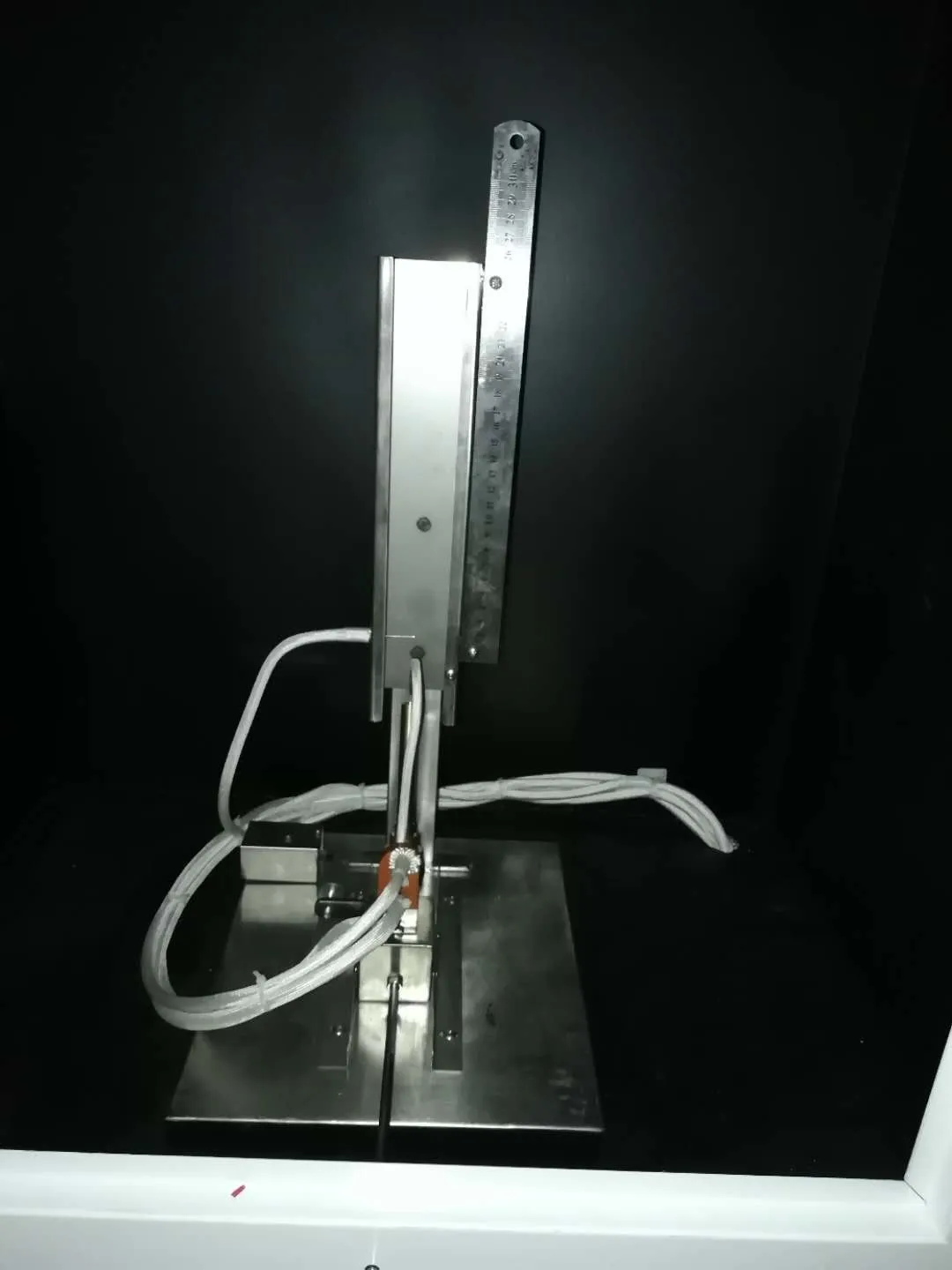

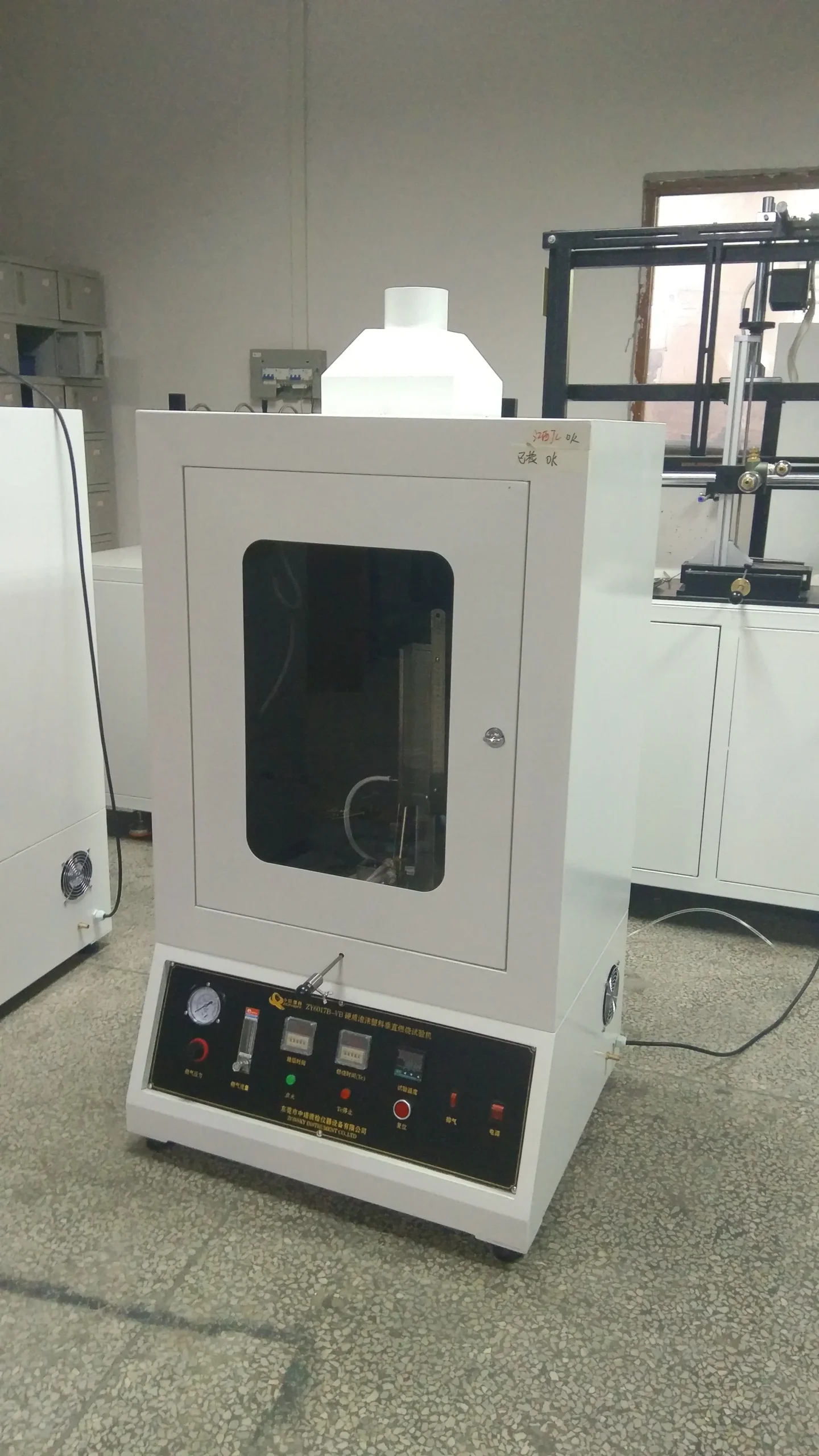

| Instrument Composition | Includes a fume hood, chimney, sample holder, and control panel. |
| Test Chamber Dimensions | 0.15m³ (L730mm × W280mm × H750mm). |
| Chimney | Length: 64mm, Width: 57mm, Height: 305mm. Made of stainless steel with an aluminum foil lining (0.025mm thick). |
| Specimen Holder | Length: 191mm, Width: 13mm. Made of stainless steel, equipped with hooks on the back. |
| Burner Type | Standard gas burner. |
| Burner Specifications | Inner diameter: (9.5±0.5) mm, Barrel length: 115mm. |
| Burning Angle | 15° to the vertical direction. |
| Flame Height | Blue flame with an adjustable height of (25–35) mm. |
| Gas Type | Propane or natural gas with a purity of over 95%. |
| Temperature Measurement | The inner flame temperature, measured by a K-type thermocouple, is (960±25)°C. |
| Gas Flow Rate | Adjustable from 0–1.1L/min. |
| Timer | 0–99.99s, adjustable with an accuracy of ±0.1s. |
| Minimum Sample Thickness | 1.0mm. |
| Standard Sample Size | Length: (254±1) mm, Width & Thickness: (19±1) mm. |
| Apparatus Dimensions | L710mm × W500mm × H1430mm. |
| Power Supply | AC220V, 50Hz, Total power: 500W. |
