Smoke Toxicity Tester
SO19700-2006 / EN 45545-2:2020
Description
Site-1

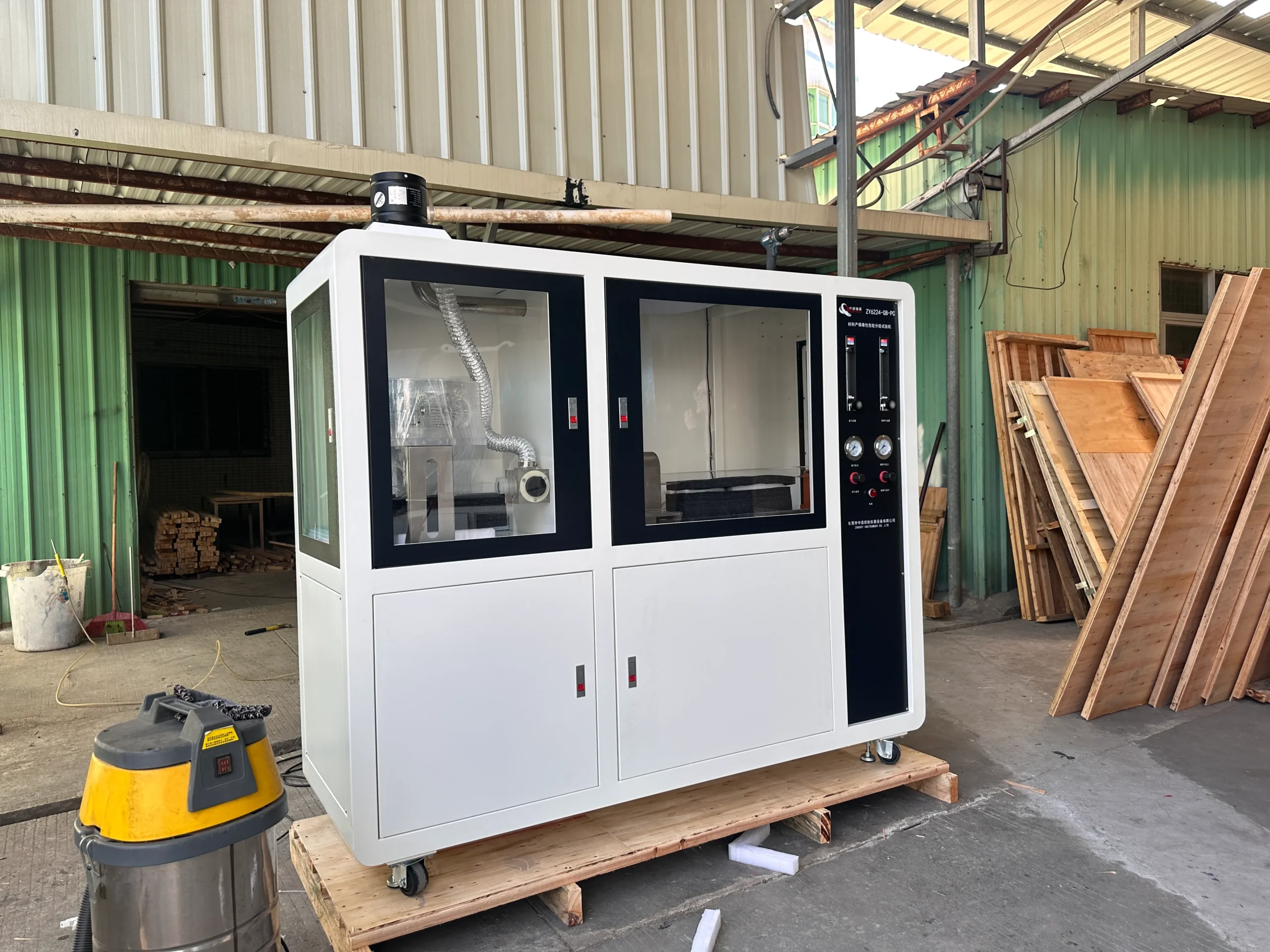

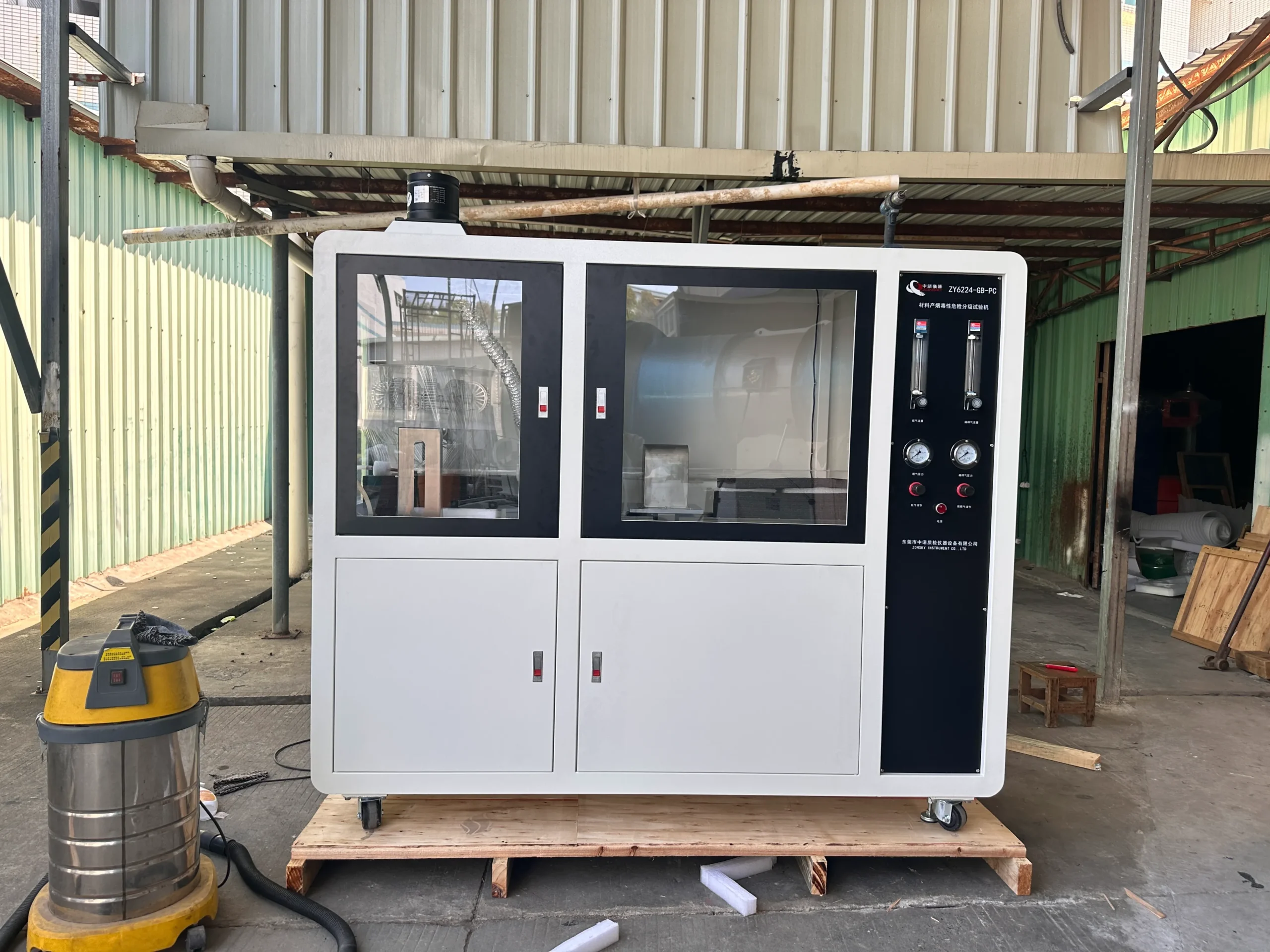

ZONSKY Material Smoke Toxicity Hazard Classification Tester is a specialized instrument used to assess the toxicity of smoke produced when materials are burned. It is designed to measure and classify the hazardous components of smoke, such as toxic gases, that can pose risks to human health during fires.
More Product Media
Site-2
Site-3
Product Demo Video
Site-4
Site-5

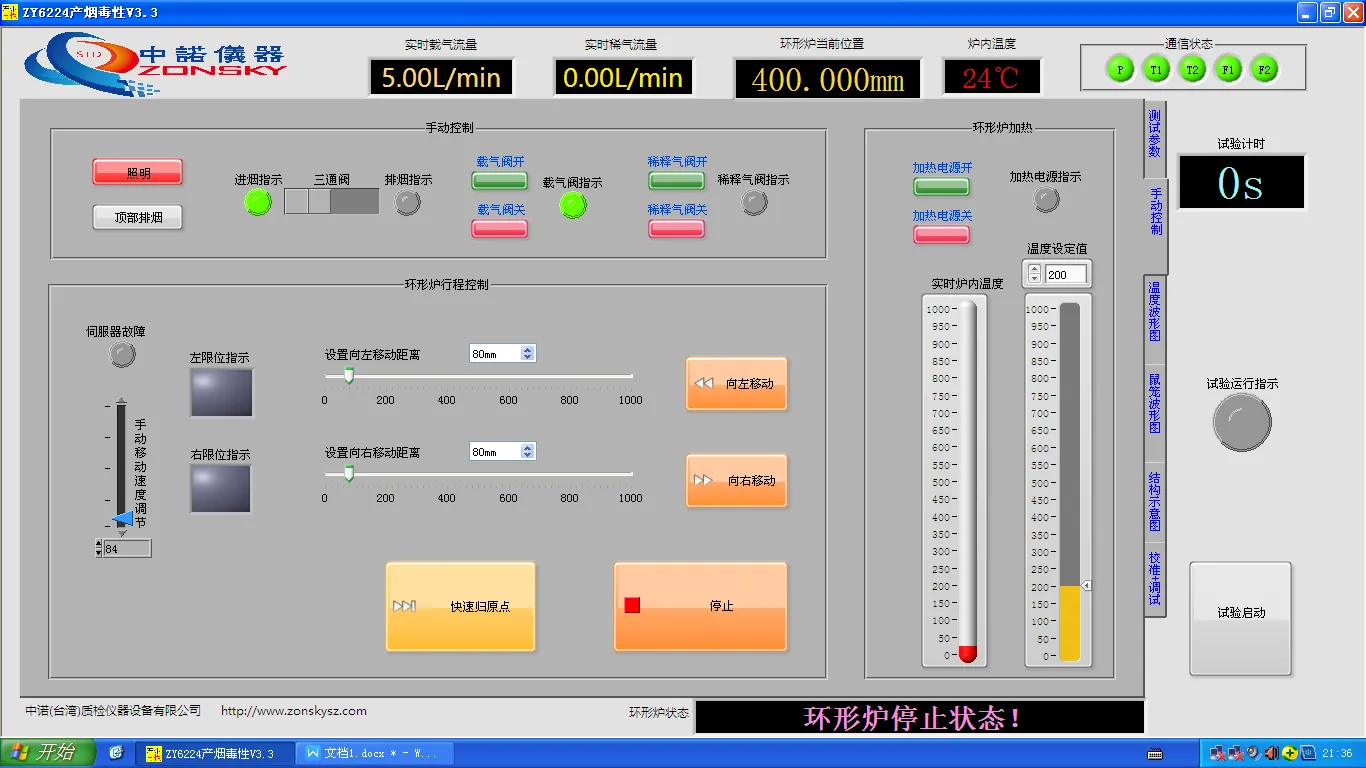

Manual control interface

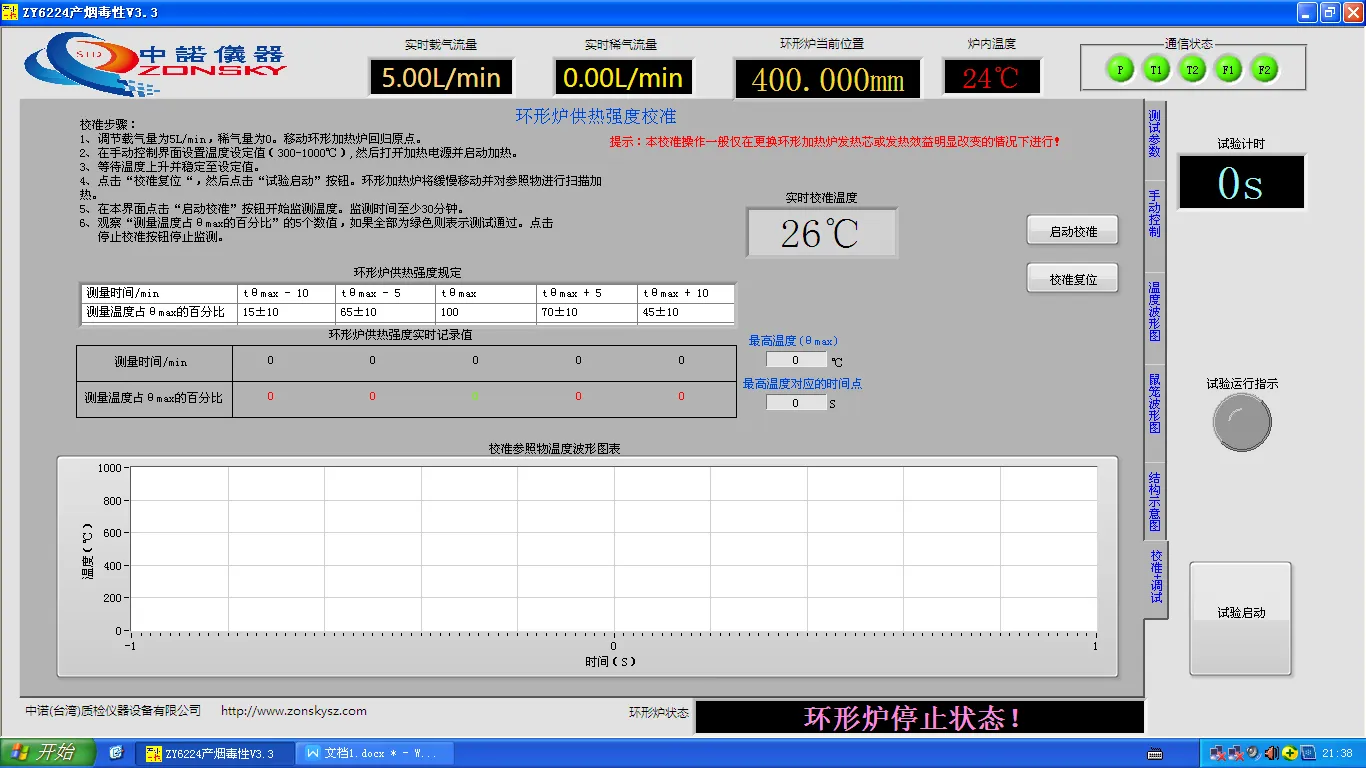

Ring furnace heating intensity calibration
Smoke Toxicity Analyzer Main Parameters
| No. | Parameter | Value |
|---|---|---|
| 1 | Test device components | Annular furnace, quartz tube, quartz boat, flue gas collection & distribution components, temperature control system, furnace displacement system, air supply system |
| 2 | Power supply voltage | AC 220V ± 10%, 50Hz |
| 3 | Electric current | ≤ 10A |
| 4 | Maximum power | 1.5 kW; heating power: 800–1000 W |
| 5 | Temperature control range | 300–1200°C; static: ±0.5°C |
| 6 | Control accuracy | Static: ±0.5°C (maintaining time > 2 min); fluctuation: ±1°C during movement |
| 7 | Air flow | 0–20 L/min, adjustable with rotameter |
| 8 | Quartz tube | Steel jade tube, 1600°C resistant; easy to disassemble/clean; high thermal conductivity |
| 9 | Flue gas collection & distribution system | Quickly and fully mixes carrier gas and dilution gas |
| 10 | Switching of gas passages | Fast switching among poisoning box, flue gas collection box, and exhaust |
| 11 | Test calibration & standard materials | 1 set of test calibration devices; 1 set of gas standard materials |
Summary
The Building Materials Non-Combustibility Test Apparatus effectively evaluates material non-combustibility to ensure compliance with fire safety standards. It features an intelligent control system, precise temperature control, and convenient data management, making it ideal for efficient and accurate testing. For more detailed parameters or technical support, feel free to contact us!
